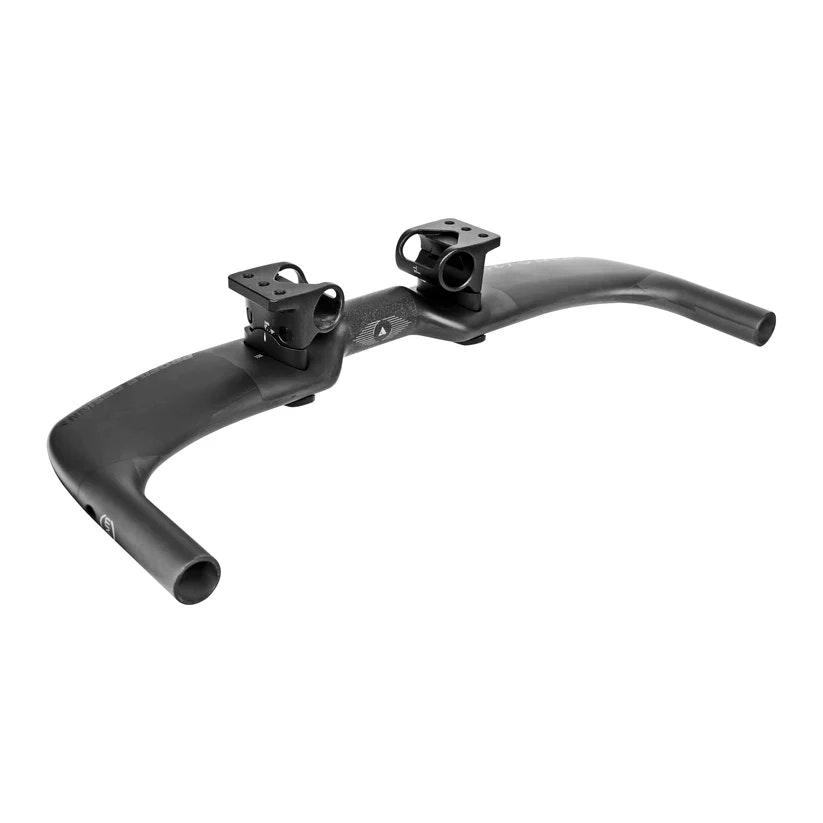

Profile Design - Wing 20c+ with Aerobar Bracket Kit

The Wing 20C+ features our updated basebar shape that is optimised for aerodynamics as well as strength and stiffness.
*Note: Sold as just a Basebar and Bracket kit
The basebar has the option for adjustment, turning the bar over changes the height of the hand grip and the aerobar by 20mm.
Performance
The Wing 20C+ offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.
Fit Data
Armrest offset: -92.5mm to -10mm in 7.5mm steps
Armrest Width: 124mm to 254mm in 18.5mm steps
Armrest Stack: The minimum is 64mm to 84mm

Accessory Options
Designed to be paired with Profile Design Extensions - Carbon or Aluminum Versions
Profile Design Extensions
The 35SLC extensions can be paired with the
Aeroport Di2 Adaptor
The WING 20C+ is ideally paired with the Tri Stem and HSF/Aeria bottle.
Tri Stem
HSF/Aeria Bottle
Brackets and Risers
A3A Riser Kits
A3C Riser Kits
Who is it for
This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Weight: 162g (100mm)
Length: 70, 80, 90, 100, 110, 120, 130mm (±17°)
Material: 3-D Forged 6061-T6 Aluminum
Clamp Diameter: 31.8mm
Angle: 73° (±17°)
Steerer Tube Diameter: 11/8in
Stack Height: 40mm
Clamp Width: 40mm
Clamp Tourque: 5Nm
Finish: Matte Black with White Accents
Tech Specs
Basebar Width: 42cm (Center-to-Center)
Internal Cable Routing: Yes (Stem or Back of the Basebar)
Di2 Compatible: Yes
Bracket: Aeria Ultimate Forged
Armrest: Not Included
Extension Length: Not Included
Extension Clamp Diameter: 22.2mm
Bracket Tilt Adjustment: 0-15°
Pursuit OD/ID: 24.1 / 18.9mm
Construction: Carbon
Color: Matte Black
Tech Guide
Torque Settings
Extension Clamp: 5Nm
Armrest Bolts: 4.7Nm
Stem Clamp: 6Nm Max
Weight
Bracket: 204g (pair)
Total: 707g
